Top Class Seismic Isolation Device

Oblate spheroid bearing can decrease to up to 90% over the earthquake waves

Structurally simple, easy-to-install patented device for protecting
computer servers, cultural assets, medical equipment and other valuable property from earthquakes.
  • Pricipale of Seismic Isolation

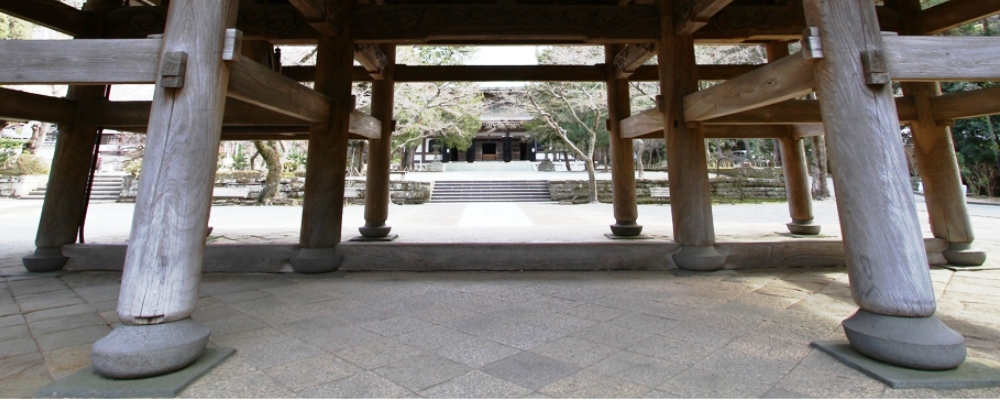

    Abserver® is inspired by ancient Japanese seismic isolation technology
    The key was the way granite at the base of pillars of mountain Buddhist temples slide during earthquakes
    The sandwiched granite oblate spheroid at the base of a temple = our bearings
  • Performance of Seismic Isolation

    Movie of Vibration experiment

    With the movie of the three-dimensional vibration stand which can reproduce the major earthquake, please see the performance of abserver®.

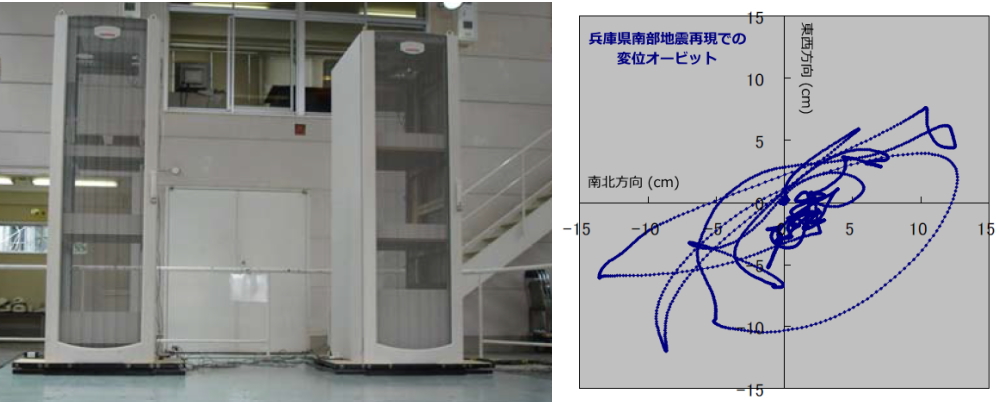

     The right server rack is put on the seismic isolator abserver®, and the left rack is put on the floor directly without any base seismic isolator.

    Video of 3D vibration test simulating the Kobe Earthquake of 1995
    Left server rack is placed directly on floor
    Right rack is placed on abserver®. What are the results?

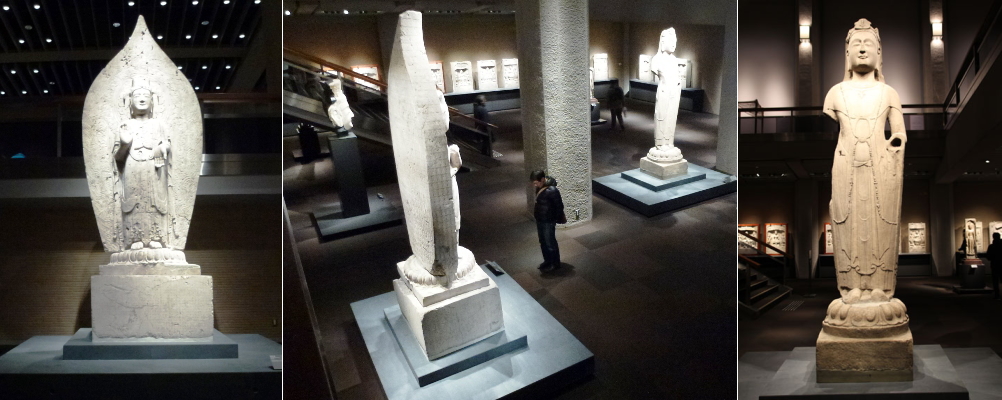

  • Seismic isolator for a cultural assets

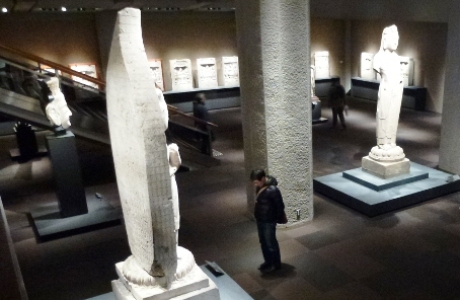

    Protect important cultural assets
    Used by the Japanese National Museum
    and many others to protect sculptures
    Fully customizable according to load

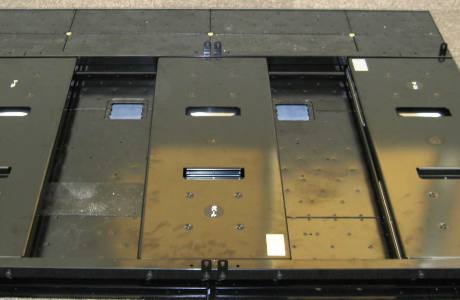

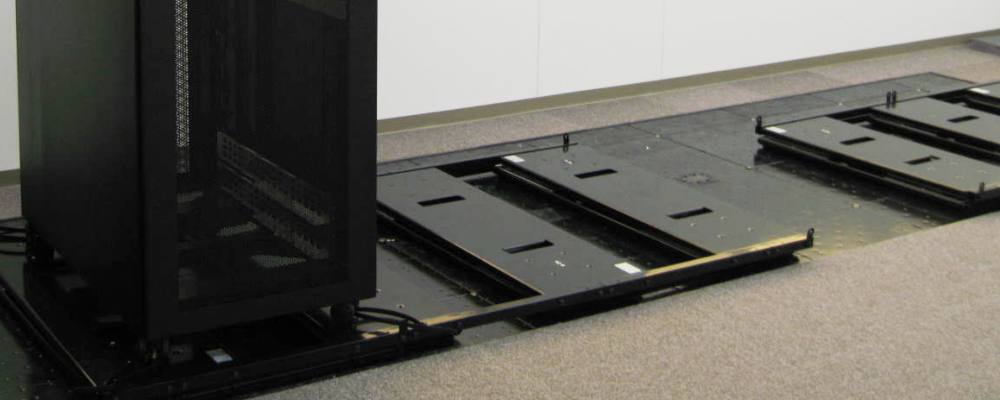

  • Seismic Isolation for Data Center
    Abserver® installations can be easily customized according to its load
    We determine optimal friction and seismic isolation
    according to the load's shape, center of gravity, and natural vibrating frequency
    Multiple abservers® can be linked together for a fleet of loads, such as server racks
    Abservers® can also be placed discretely per load
  • Option of base seismic isolation
    Abserver® installation options:
    Seismic Isolation rubber pads for epicentral earthquakes
    Various bearings to control friction performance
    Installation is simple and can be done by anyone!
    Maintenance-free design that can continuously withstand multiple earthquakes

World-class R&D

Abserver® was jointly developed in a public-private partnership between Japanese craftsmen and Tokyo Metropolitan University and Tokyo Metropolitan College of Industrial Technology. Research and testing is continuously performed at these institutions to improve the product.

Proven performance

Excellent performance which was proved with a Japanese eminent three-dimensional vibration experimental device.
It has met and exceeded stringent standards to be used by leading automobile manufacturers, the National Museum of Japan, and leading data center providers to protect their important assets.

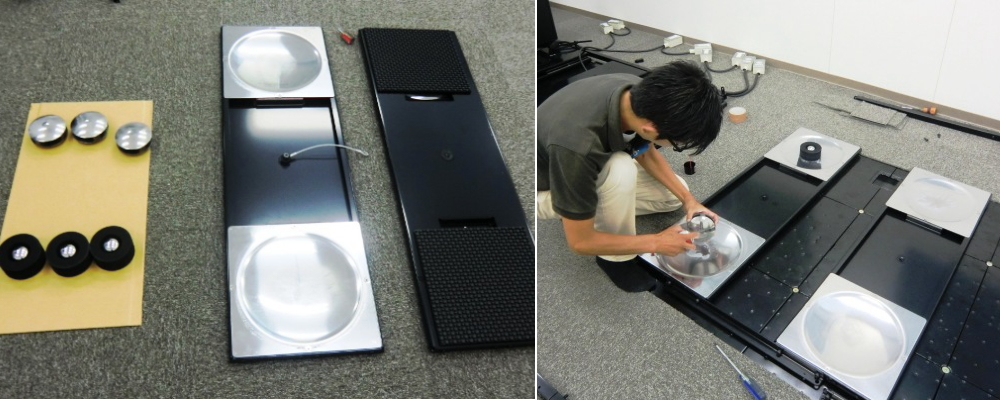

Easy installation
Maintenance-free

Special training is not necessary in order to install an abserver®. Assembly is simple and can be done by almost anyone.
The device is also very slender and will not attract attention after installation. We offer a customizable free-size model and a fixed-size model for server racks, giving you the ability to tailor your installation according to each site.

Customizable
seismic isolation

In order to maximize seismic isolation, it is necessary to customize your abserver® installation according to the building's foundation and its natural vibrating frequency along with the characteristics of the load. We can offer consultations to determine the suitable type and number of bearings and an optimal seismic isolation plan in consideration of these factors.

Recent installations and experiments

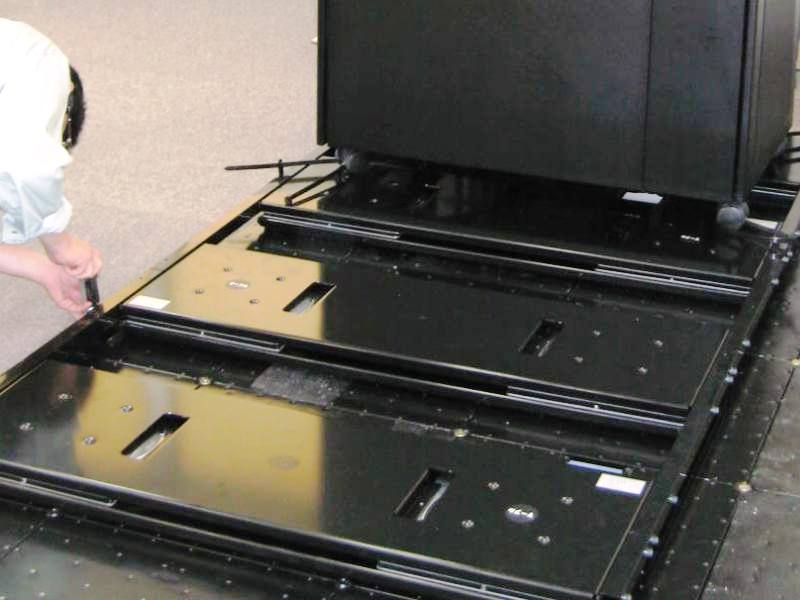

サーバーセンターの免震Image

Data Center

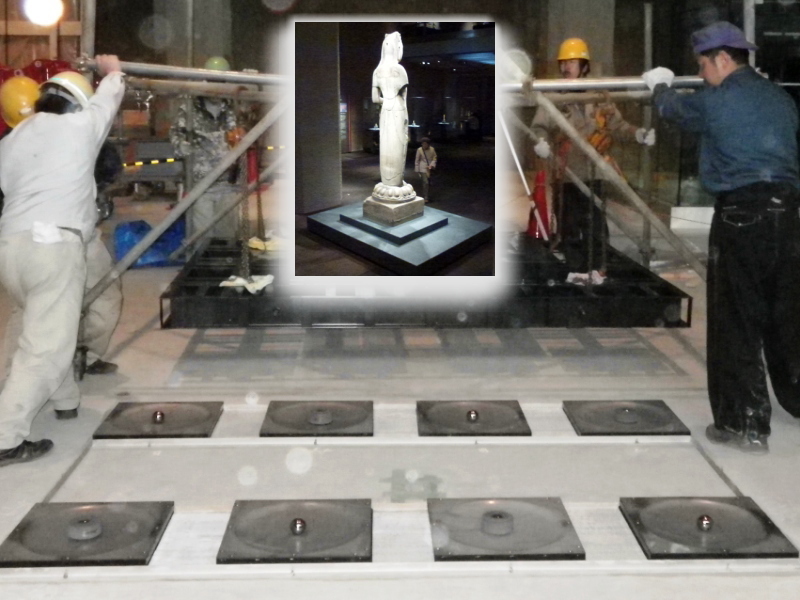

国立博物館の免震Image

Japanese National Museum

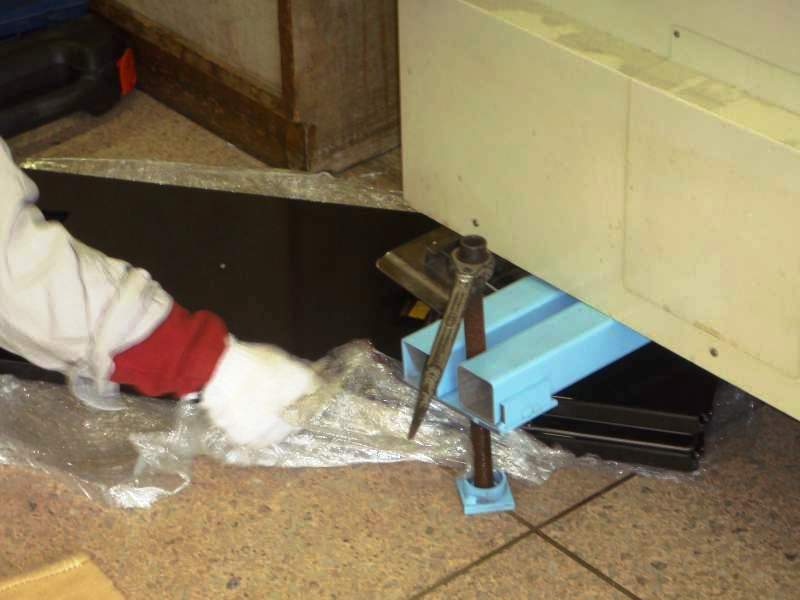

東京都交通局運行システムの免震Image

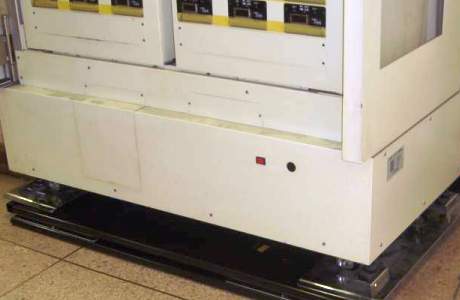

Bureau of Transporation, Tokyo Metropolitan Government

振動実験Image

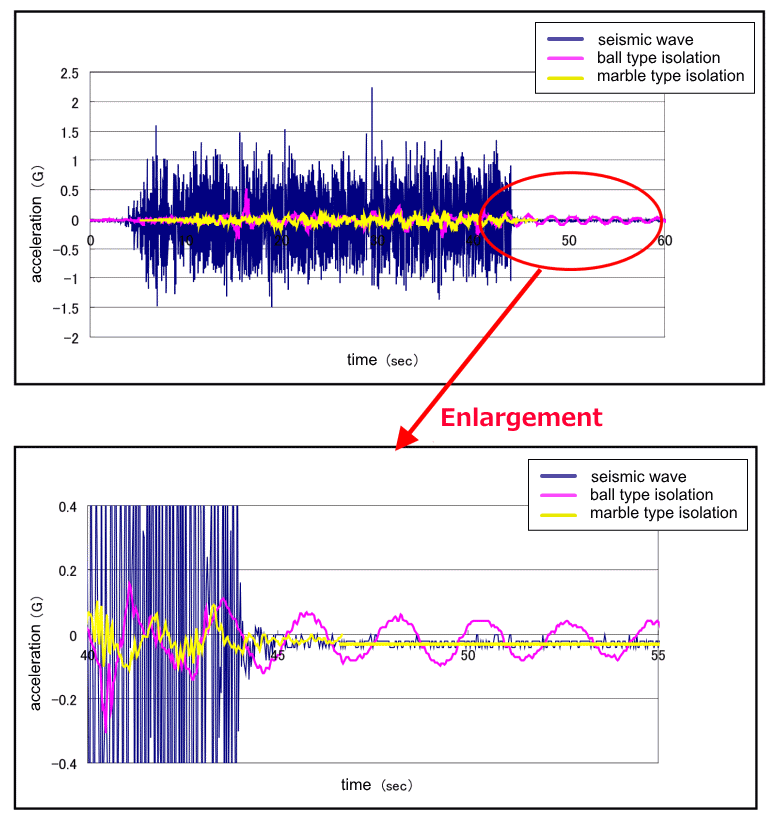

Comparison between oblate spheroid (abserver®) and symmetrical spheroid (conventional) bearings

Recent News Recent News

July
2016

Installed at Sendai Municipal Museum

Abserver® was installed as the seismic isolators for the Buddha statues on display at the special exhibit to pray for the revival after the Great East Japan Earthquake titled "The Buddhas of Muro-ji Temple, a National Treasure".

 

May
2015

Installed at Izu ivory Museum

Abserver® was installed at Jewelpia, the largest ivory and stone sculpture museum in the world. All sculptures are regarded as the same grade as Chinese national treasures.
May.
2017

Exhibited at the Tokyo Big Site on May 2017

We exhibited our products at the 26th Environmental Exposition 2017, held at Tokyo Big Site.
March.
2013

Abserver® on national television!

Abserver® was introduced on the NHK Television program. It was called the "secret weapon" that protects against earthquakes the "Huge Ishibotoke" piece of the National Museum of Japan's Oriental Hall.
